Design for a Mass-Operational House: Storage Space Staircase Construction

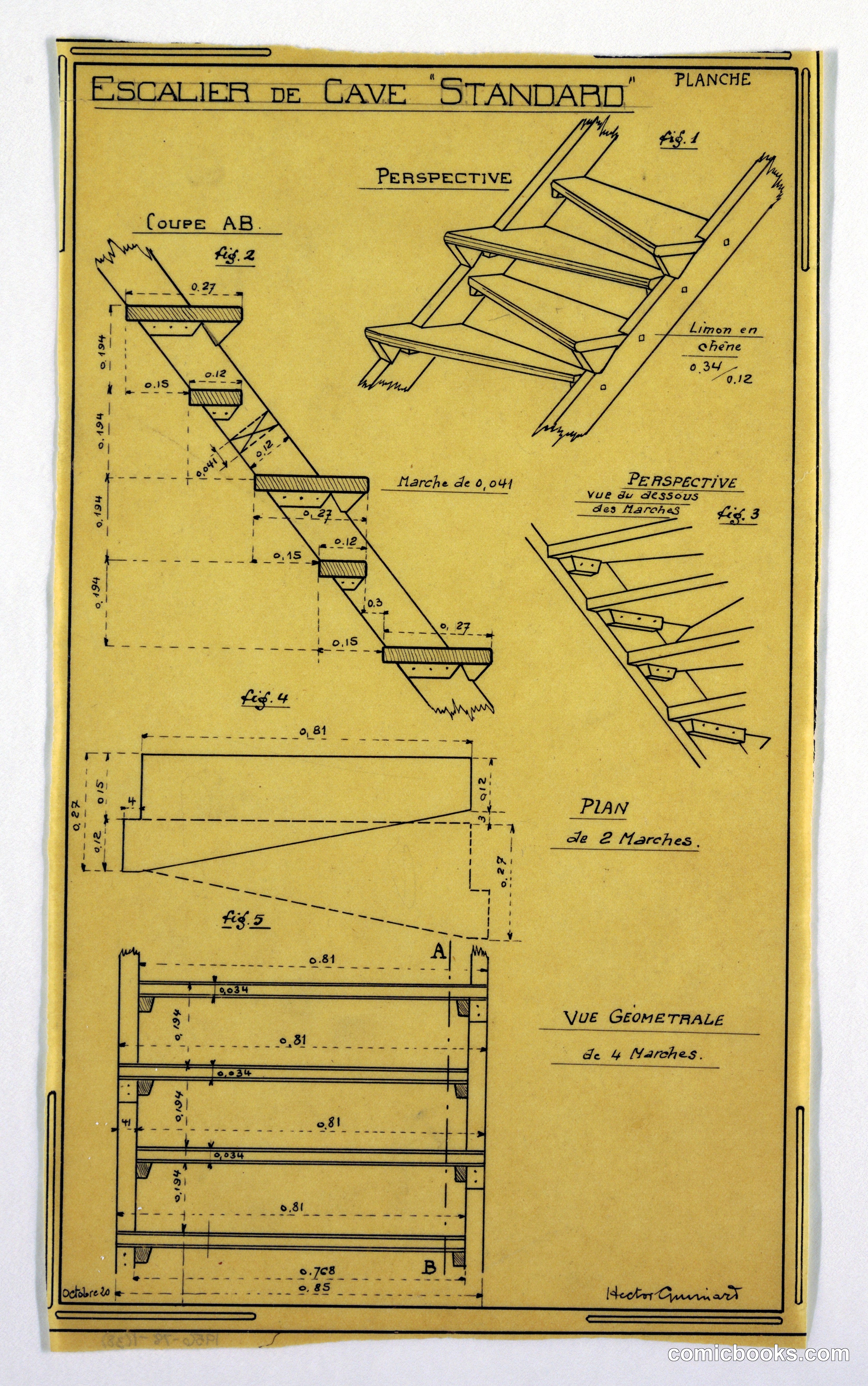

Hector Guimard's technical drawing demonstrates the practical design philosophy behind affordable housing. The sheet presents multiple views—cross-section, perspective, plan, and geometric elevation—of a standardized staircase system for a "Cave Standard" (standard storage cellar). Each view isolates different aspects of construction: tread dimensions, rise measurements, and spatial integration. Guimard's meticulous notation of measurements in meters reflects early twentieth-century rationalization of domestic space. This design proposal exemplifies the period's architectural ambition to solve housing shortage through standardization and efficient material use, translating industrial production principles into residential architecture.
