Design for a Mass-Operational House: Construction Directions for Supports

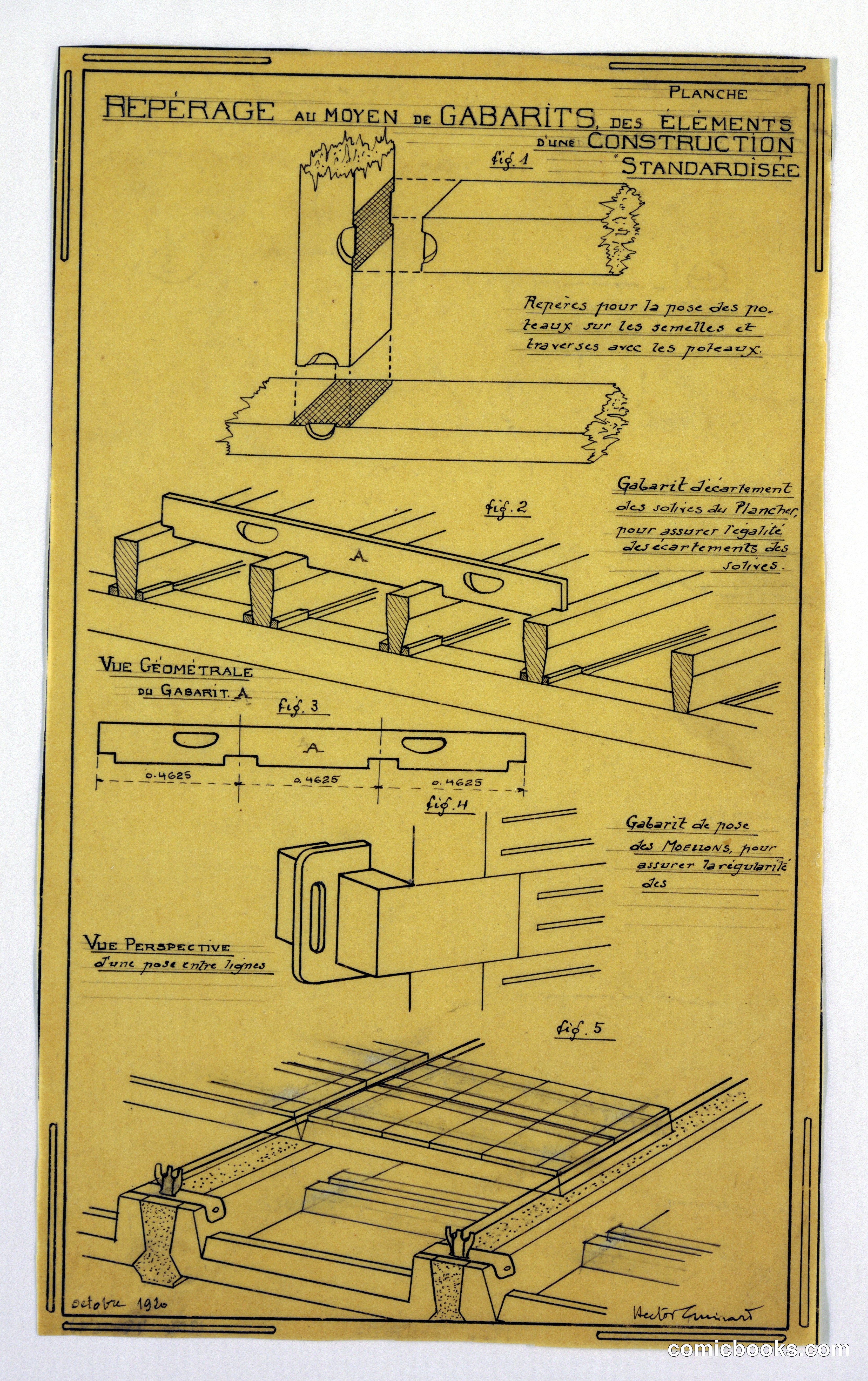

This technical drawing by Hector Guimard demonstrates the Art Nouveau master's venture into standardized housing design. The blueprint details modular construction methods for residential supports, featuring five numbered figures that break down assembly procedures for structural elements. Guimard's approach reflects early 20th-century industrial design principles, translating his signature curved forms into reproducible components for mass production. The French architect's system aims to simplify joinery and accelerate construction while maintaining structural integrity. Annotations in French identify specific gabarit (template) applications and assembly sequences, making this sheet a practical engineering document as much as a design statement.
